Product Specification

Brand Name: BJT

Type: Tattoo accesories

Model Number: 6010

Material: copper

Description:

6010 Power Motor Brushless Motor UAV Motor 130kv

Internal heat dissipation and circulation air cooling of motor, suitable for long-term operation

Max ​Pull forces:5100g

battery:12s. 3s battery can run

shaft diamater:6mm

There are scratches on the surface.see the picture

Model: 6010

the motor  appropriate take-off weight

4 axles     around   5kgs
6 axles     around   7.5kgs
8 axles     around   10kgs
Outside diameter: 68MM * 30MM
Axle Diameter: 4MM
KV Value: 130KV
No-load current: 0.5-1.03A (maximum current 40A)
Resistance: 86 M
Maximum power: 1150W
Max force: 5100g
Rated speed: 5590 (rpm)
Installation hole spacing: 12/15mm (outlet surface) 25mm (bottom surface)
Installation hole size: M3*4
Weight: 230g
Number of stator slots: 18N
Motor poles: 24P
Lithium battery: 12S
Condition :      Dismantle motor

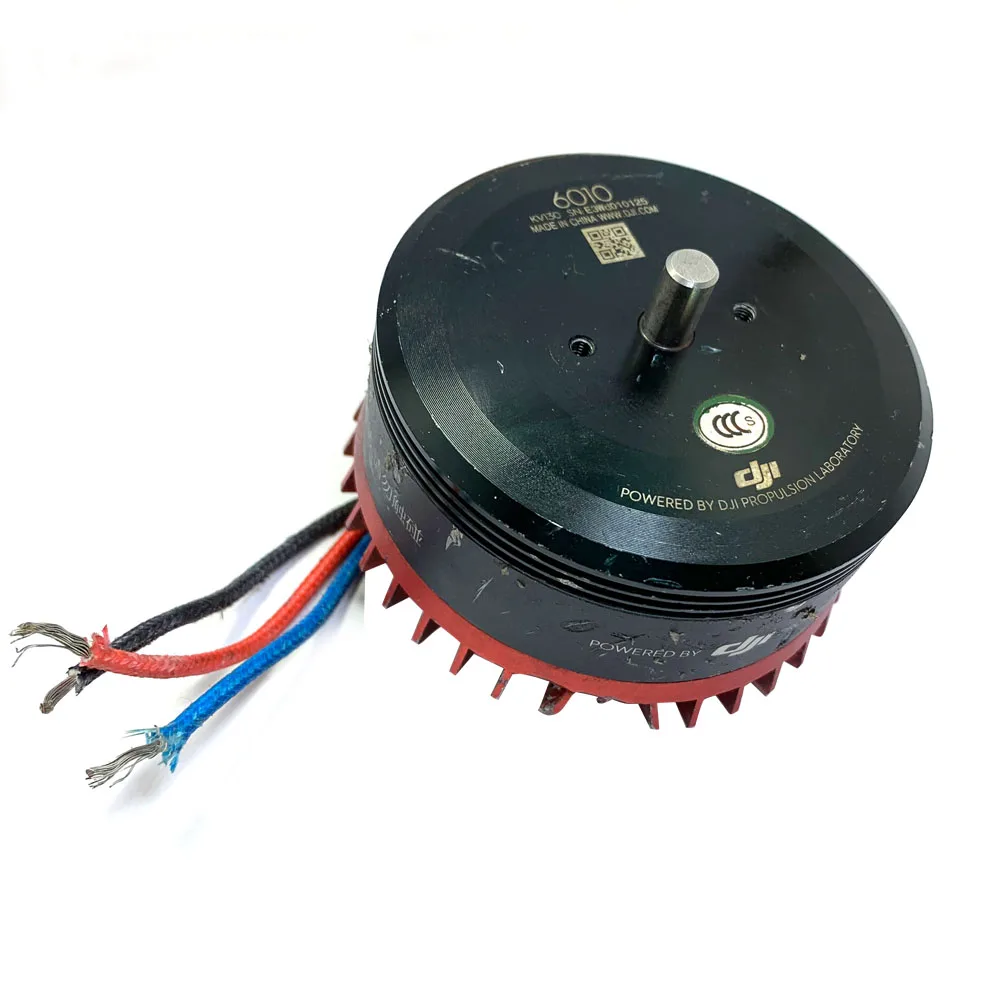

Dajiang Plant Protection Machine has exquisite workmanship and solid materials. The appearance of the brushless motor 6010 with external rotor has bumped, scratched and scratched. The tail radiator is bumped a little askew. Every motor is tested and shipped before shipment. Don't buy if you mind of this. The working voltage of the motor is about 12S 45V, but it can also work by measuring the 1685 turn/minute with 3S batteries of 11.85V.
Stator size: 60 x 10 mm
KV value: 130rpm/V
Maximum pulling force: 5.1kg/rotor
Maximum power: 770W

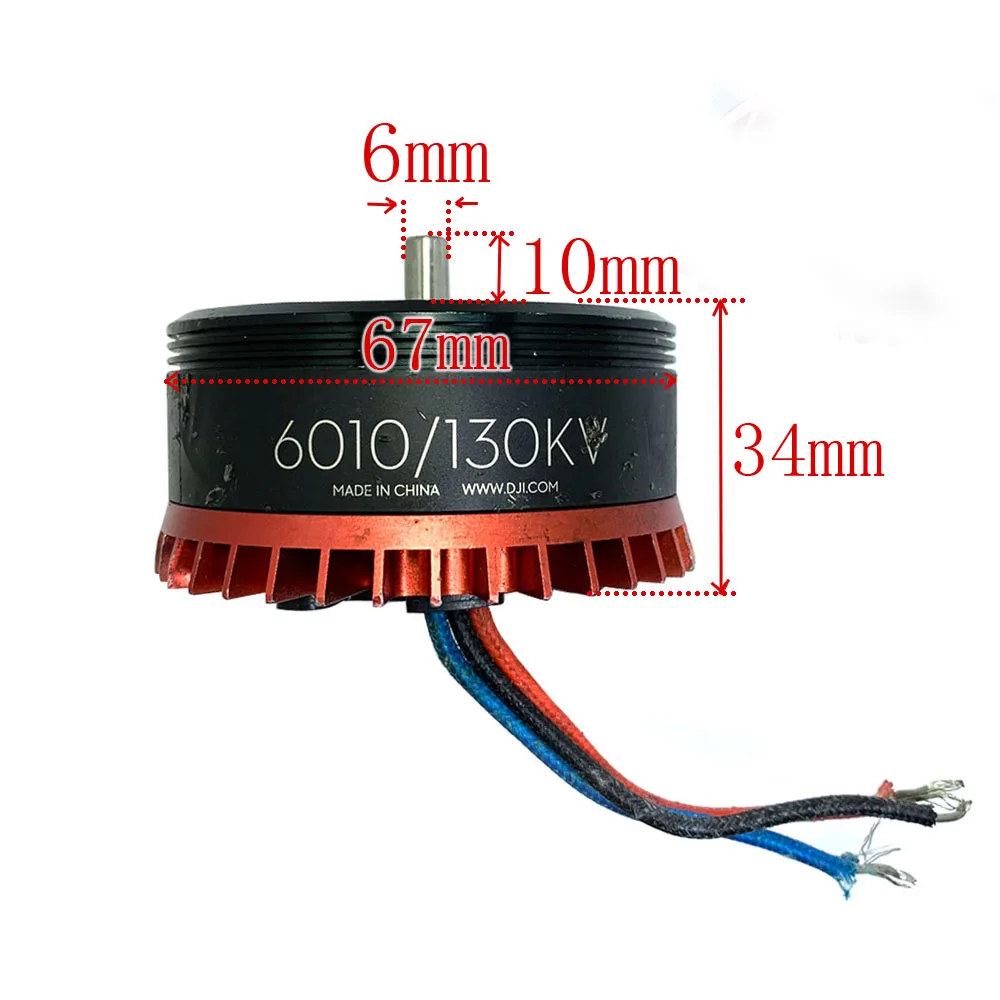

Motor Outer Diameter: 67mm
Overall thickness of motor: 34mm
Motor shaft diameter: 6mm
Motor shaft length: 10mm
Motor weight: 270 G
If you knows DIY winding can rebuild it

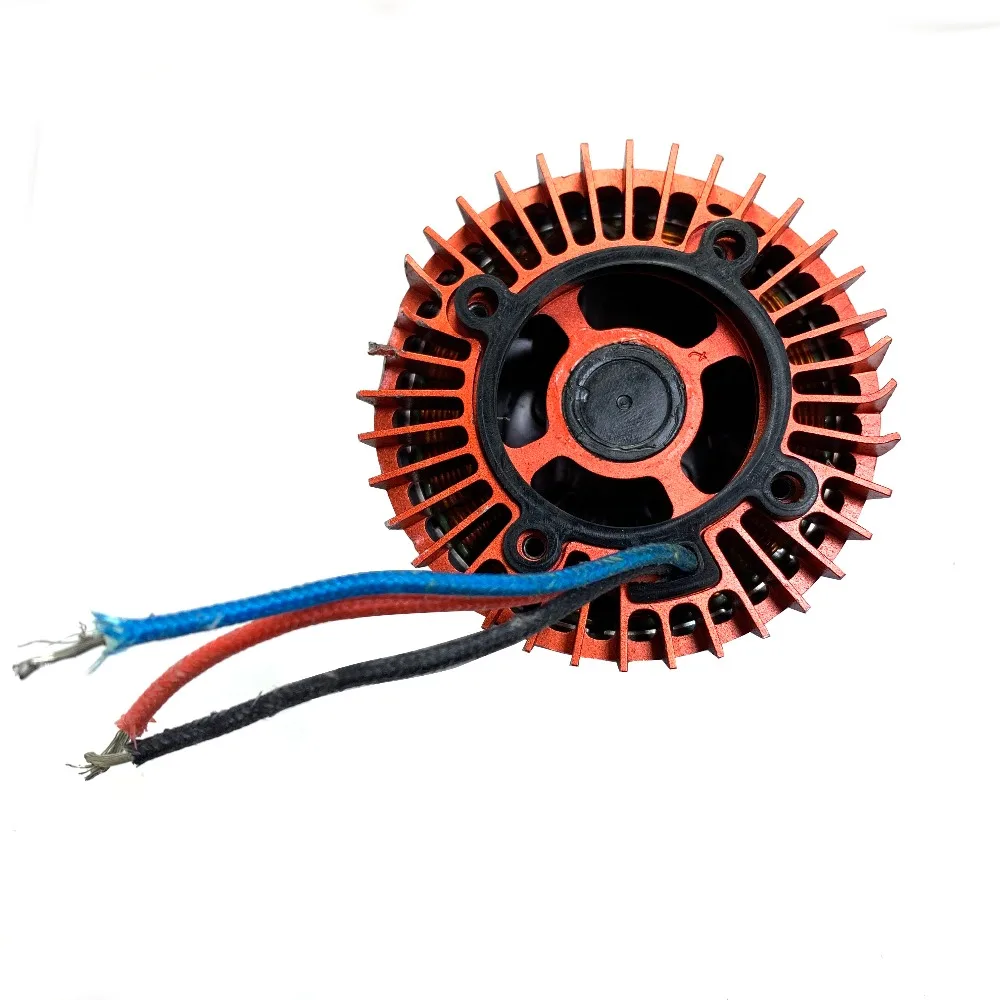

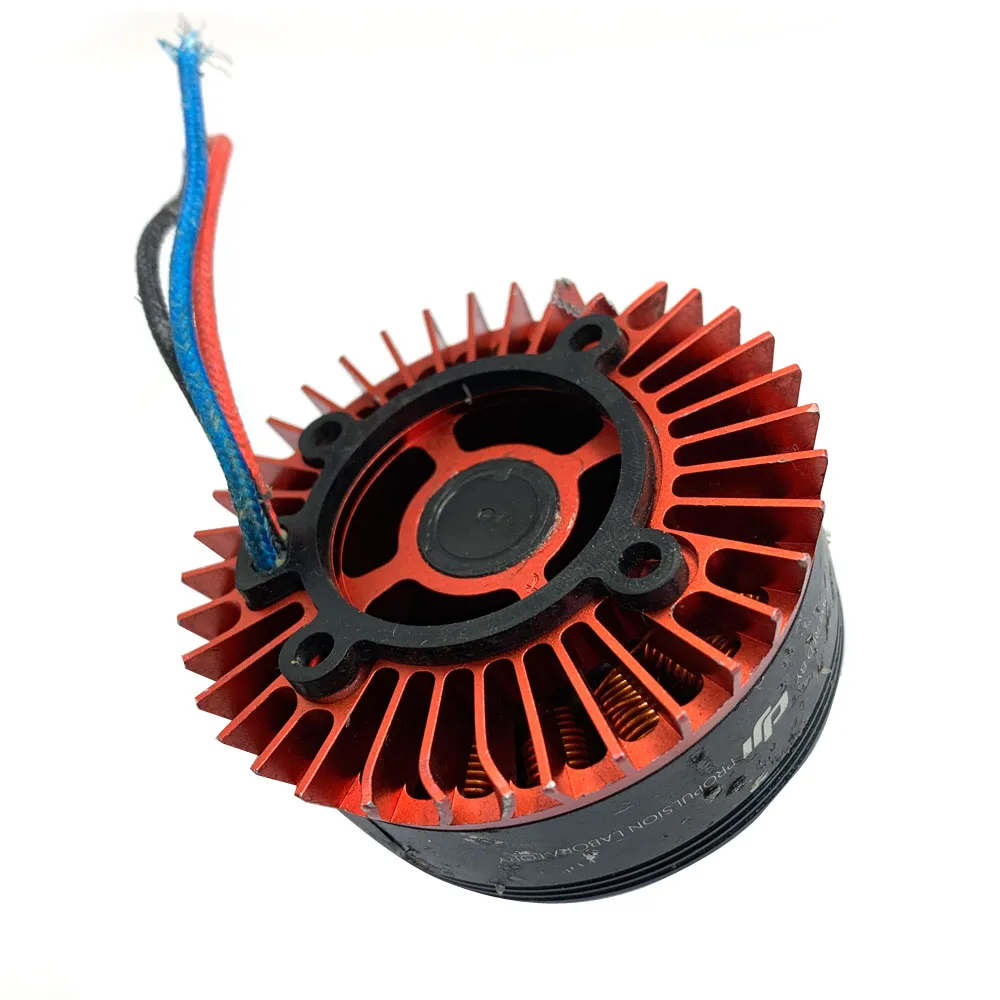

The motor is a double NSK ball bearing with a cooling fan structure. The external rotor has been dynamically balanced and calibrated. Twenty pieces of Nd-Fe-B magnetism are strong. The workmanship is exquisite and the precision material is solid.
